Bailey · motorhome

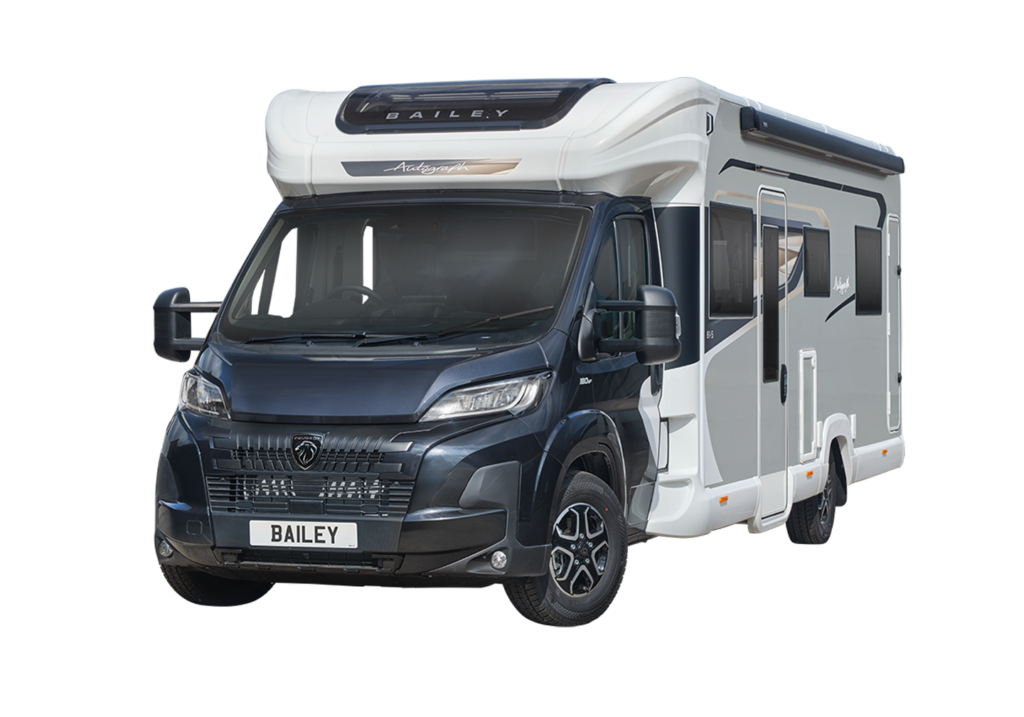

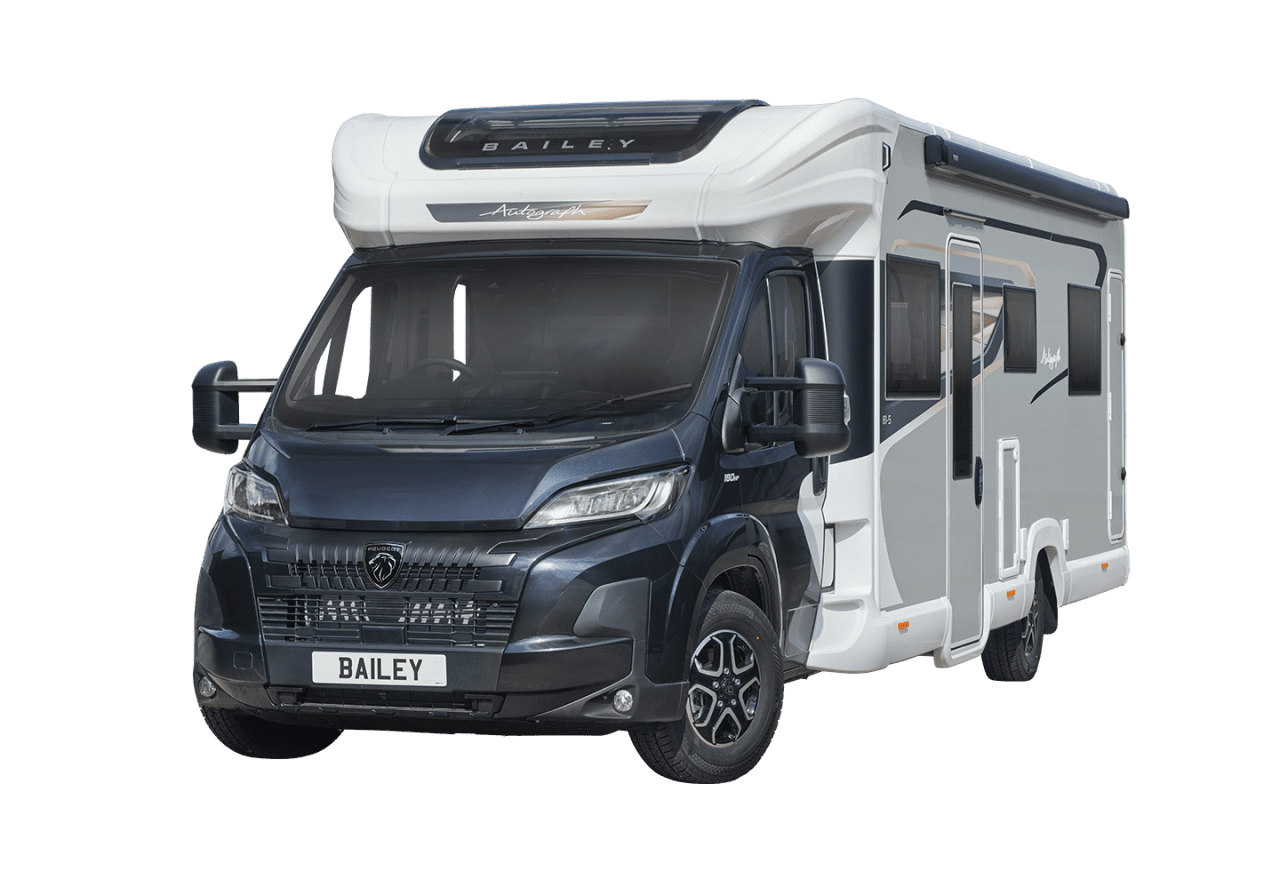

Bailey Autograph 81-5
RoamWorthy records the Bailey Autograph 81-5 as a motorhome. Recorded catalogue data: 6 berths; layout: Rear Lounge; length 8.12m; width 2.49m; height 2.83m; MTPLM 4,500kg; payload 1,037kg; base vehicle: Peugeot Boxer; recorded price range £84,500 to £105,000. RoamWorthy currently links 1 live dealer listing to this model. Specifications can vary by model year, trim and optional equipment. Check the individual listing and manufacturer documentation before purchase.
Bailey Autograph 81-5 key facts
- Berths: 6
- GVW: 4500 kg
- Unladen weight: 3463 kg
- Payload: 1037 kg
- Length: 8.12 m
- Width: 2.49 m
- Base vehicle: Peugeot Boxer
- Observed price range: £84,500 to £105,000
- Available listings: 1
Key features
- Front and rear electrically operated multi-position drop-down double beds
- Spacious rear U-shaped lounge offering 360-degree panoramic views
- Peugeot Boxer 2.2L 180bhp engine with 8-speed automatic transmission
- Large rear garage with double door access and internal power sockets
- Alde radiator central heating and hot water system for Grade III insulation
- Five dedicated travel seats with ISOFIX points for family safety
- 200W Truma solar panel and twin 95Ah AGM underfloor leisure batteries
Is the Bailey Autograph 81-5 the right motorhome for you?
The Bailey Autograph 81-5 is a high-capacity six-berth motorhome designed for large groups or families. It features a triple-lounge configuration, two electric drop-down beds, and a powerful 180bhp engine. With a length of 8.12 metres and a payload exceeding 1000kg, it offers significant living space and storage for extended touring.
- Six-berth capacity with two electric drop-down double beds and a convertible double.
- Built on an AL-KO AMC chassis with a 180bhp Peugeot Boxer engine.
- Twin lounge configuration featuring a rear U-shaped lounge and front L-shaped dinette.
- Substantial 1037kg payload capacity for heavy equipment and supplies.
- Winterised Alu-Tech body shell equipped with Alde radiator central heating.
Worth knowing: The 4500kg MTPLM requires a C1 category driving licence. External dimensions exceeding eight metres may limit access to smaller campsites.
Buying a Bailey Autograph 81-5
Who it suits
- Large families requiring six dedicated berths and five travel seats with ISOFIX.
- Tourists planning long-distance European trips who need a high payload.
- Year-round travellers who benefit from Grade III insulation and Alde heating.
Reasons to consider it
- It offers a unique triple-lounge layout that provides apartment-style living.
- The 1037kg payload is exceptional for a vehicle in this class.
- Off-grid capability is supported by a 200W solar panel and twin leisure batteries.
What to check
- Verify the operation of both electrically operated drop-down double beds.
- Inspect the rear garage for any signs of wear from heavy equipment storage.
- Check the service history of the 180bhp Peugeot engine and 8-speed automatic gearbox.
Worth knowing: Confirm the specific driving licence requirements for a vehicle with a 4500kg MTPLM. Consider the fuel consumption associated with a large, wide-bodied motorhome.
Compare the Bailey Autograph 81-5 with similar models
| Model | Berths | Maximum weight | Length | Typical price |
|---|---|---|---|---|
| Bailey Autograph 81-5 | 6 | 4500 kg | 8.12 m | £84,500 to £105,000 |
| Bailey Autograph 81-6 | 6 | 4250 kg | 8.12 m | £89,995 to £105,995 |
| Swift Kon-Tiki 874 180BHP Auto | 6 | 5000 kg | 8.22 m | £85,000 to £135,000 |
The Bailey Autograph 81-5 sits at the top of the Autograph range, offering a balance of high-occupancy sleeping and significant storage. While the Swift Kon-Tiki 874 provides a longer body and higher weight limit, the 81-5 maintains a competitive 1037kg payload within its 8.12-metre frame. Compared to the Autograph 81-6, it shares the same length but offers different weight specifications. The choice between these models depends on whether the buyer prioritises the specific triple-lounge layout and the 4500kg MTPLM capacity.
Worth knowing: Specifications and prices can vary by model year, trim and optional equipment.
Ownership and Maintenance Tips
- Utilise the 200W solar panel and twin batteries to maintain charge during off-grid stays.
- Regularly test the Alde central heating system to ensure four-season comfort.
- Make use of the internal power sockets in the garage for charging outdoor gear.
Common mistakes to avoid
- Underestimating the turning circle required for an 8.12-metre long vehicle.
- Exceeding the 4500kg MTPLM if the high payload capacity is not monitored.
Worth knowing: The 2.49-metre width requires extra care when navigating narrow rural lanes.
Alternatives to the Bailey Autograph 81-5
- Bailey Autograph 81-6 - For buyers seeking a similar six-berth layout on a slightly shorter chassis, this model offers a lower MTPLM.
- Swift Kon-Tiki 874 180BHP Auto - This alternative provides a longer body and a higher MTPLM for those requiring even greater weight capacity.
- Bailey Autograph 79 6 - A similarly sized model worth comparing on layout, weight and price.
Data and source notes
- This page uses the maintained RoamWorthy record for the Bailey Autograph 81-5.
- 6 model images are recorded for this page and served from RoamWorthy-hosted media.
- 1 current linked dealer listing helps keep stock and price context connected to the model.
- 2 recorded source groups are available in the source section below.
Proof notes
- Specifications can differ by production year, trim and optional equipment.
- Dealer listings are used as current marketplace evidence, not as a substitute for the exact vehicle documentation.
Worth knowing: Confirm weights, dimensions and fitted equipment for the exact vehicle before purchase or towing.
